CT-103A / CT-103M 45° Flaring Tools – Large Listed Sizes
CT-103A: 7/8, 1 and 1-1/8 inch; CT-103M: 22, 25 and 28 mm. Compare 45° flaring-tool configurations, packing and sample requirements for wholesale orders.
Large listed sizes for a separate flaring-tool configuration
CT-103A and CT-103M are 45-degree flaring tools listed in the Torchmark HVAC Tools Catalogue 2026, page 05. Choose the full model suffix and confirm every required tube outside diameter before requesting samples.
Catalog specifications
- CT-103A: 7/8, 1 and 1-1/8 inch.
- CT-103M: 22, 25 and 28 mm.
- Flare angle: 45 degrees.
- Packing quantity: 10 pieces per case.
- Carton dimensions: 31.5 × 17 × 14.5 cm.

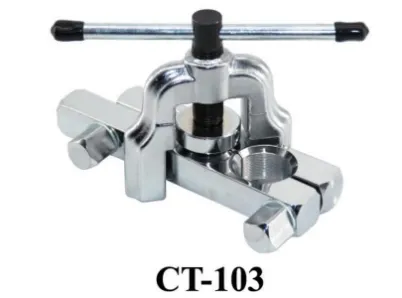

The catalog illustration is labelled CT-103. Confirm whether the supplied clamping components are the A or M version; the inch and metric lists are separate configurations. Final packing depends on the confirmed order and packaging.
Does it fill a gap in your tool range?
A kit with a maximum listed size of 3/4 inch does not cover the CT-103A sizes listed above. Conversely, the CT-103A list does not include smaller sizes. Build your assortment from explicit size lists, not only a minimum-to-maximum range.
For a different size range and mechanism, compare the CT-806A specifications. For smaller inch or metric configurations, see CT-190A / CT-190M.
Confirm application and supplied components
Send the tube material, wall thickness, outside diameter and required fitting/flare specification. The catalog's angle and size list do not establish suitability for every material, double flare or installation. Ask for application confirmation, clamping-bar photographs, included-component details and sample instructions before approval.
Wholesale enquiries
Minimum order: 500 pieces. Mixed orders are available subject to confirmed allocation. Samples are charged; sample freight is refunded after an order is placed. Typical lead time is 15–45 days, subject to the confirmed order.
Send CT-103A or CT-103M, quantities, destination and packaging requirements to Amy for a quotation or WhatsApp +86 158 6745 7689.
